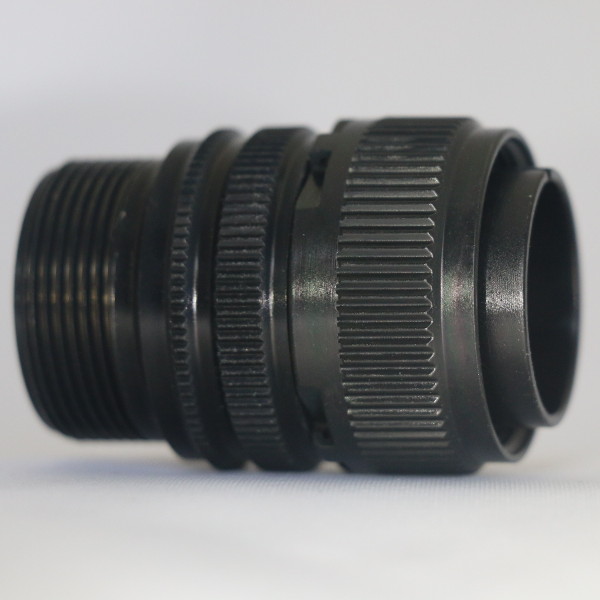

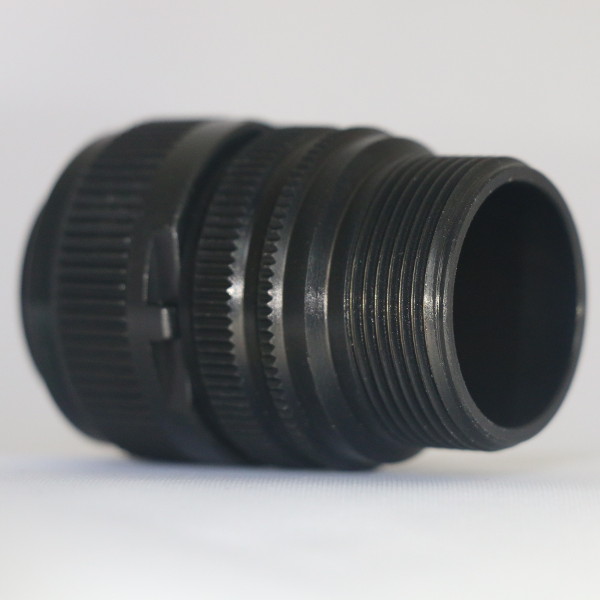

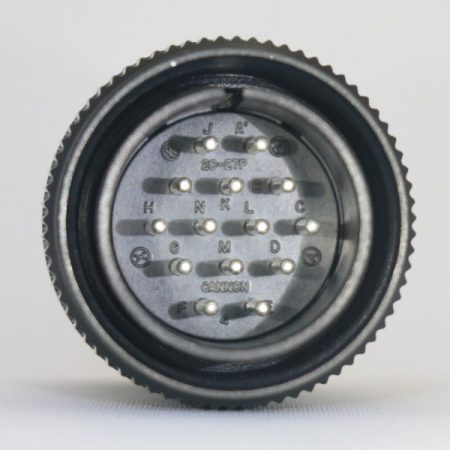

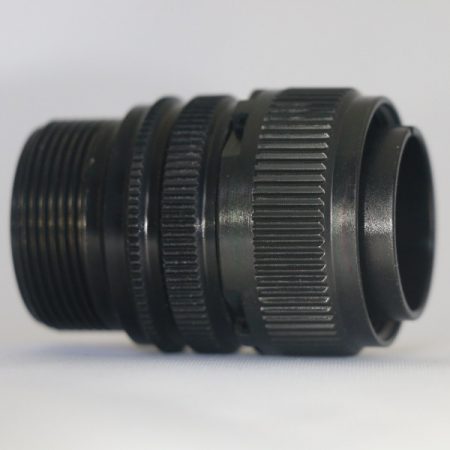

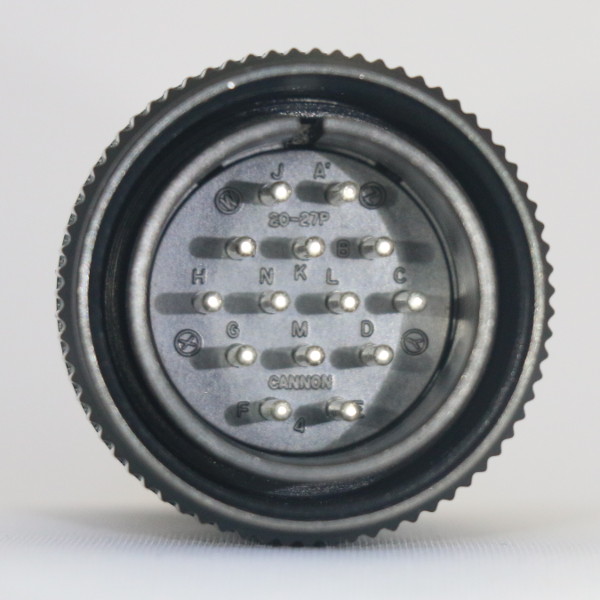

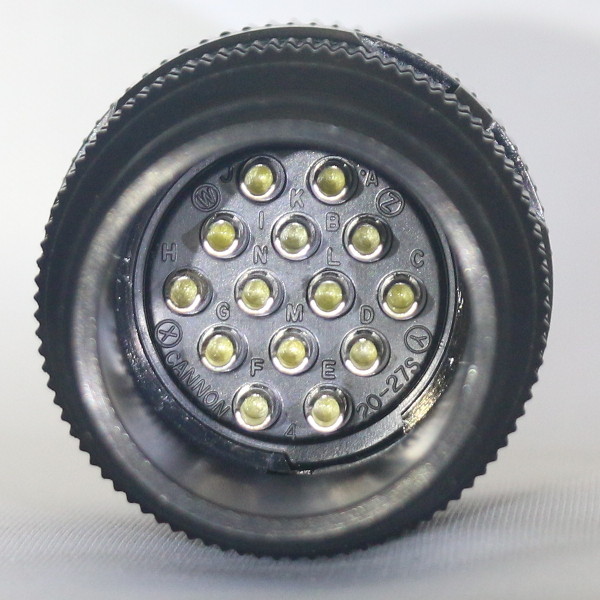

説明
Performance Specifications(仕様)
<table border=”3″>
<tbody>
<tr>
<td><label>Temperature Range 温度範囲</label></td>
<td>-55℃ ～ +125℃ ( -67°F ～ +257°F )</td>
</tr>
<tr>
<td><label>Current Rating 定格電流</label></td>
<td>13 A ～ 150 A*</td>
</tr>
<tr>
<td><label>Durability 挿抜耐久性</label></td>
<td>500 mating cycles min. 500回以上</td>
</tr>
<tr>
<td><label>Wire Accommodation 適用電線</label></td>
<td>0 ～ 20AWG*</td>
</tr>
<tr>
<td><label># of Contacts 極数</label></td>
<td>2 ～ 48</td>
</tr>
<tr>
<td><label>Termination 結線方法</label></td>
<td>Solder(Lead Free) 半田付け(鉛フリー)</td>
</tr>
</tbody>
</table>
* Depending on contact size コンタクトサイズによる
Dielectric Withstanding Voltage(耐電圧)
<table border=”3″>
<tbody>
<tr>
<td rowspan=”2″><label>仕様定格</label></td>
<td>Test Voltage</td>
<td colspan=”2″>Operating Voltage</td>
</tr>
<tr>
<td><label>AC(rms)</label></td>
<td><label>DC(rms)</label></td>
<td><label>AC(rms)</label></td>
</tr>
<tr>
<td>inst.</td>
<td>1,000</td>
<td>200</td>
<td>250</td>
</tr>
<tr>
<td>A</td>
<td>2,000</td>
<td>500</td>
<td>700</td>
</tr>
<tr>
<td>D</td>
<td>2,800</td>
<td>900</td>
<td>1,250</td>
</tr>
<tr>
<td>E</td>
<td>3,500</td>
<td>1,250</td>
<td>1,750</td>
</tr>
<tr>
<td>B</td>
<td>4,500</td>
<td>1,700</td>
<td>2,450</td>
</tr>
<tr>
<td>C</td>
<td>7,000</td>
<td>3,000</td>
<td>4,200</td>
</tr>
</tbody>
</table>
Contact Engaging & Separating Force(挿入挿抜)
<table border=”3″>
<tbody>
<tr>
<td rowspan=”2″><label>Contact Size</label></td>
<td colspan=”3″>Force in Lbs</td>
</tr>
<tr>
<td><label>Maximum</label></td>
<td><label>Average</label></td>
<td><label>Minimum</label></td>
</tr>
<tr>
<td>16</td>
<td>3.00</td>
<td>2.06</td>
<td>0.13</td>
</tr>
<tr>
<td>12</td>
<td>5.00</td>
<td>3.50</td>
<td>0.19</td>
</tr>
<tr>
<td>8</td>
<td>10.00</td>
<td>-</td>
<td>0.31</td>
</tr>
<tr>
<td>4</td>
<td>15.00</td>
<td>-</td>
<td>0.63</td>
</tr>
<tr>
<td>0</td>
<td>20.00</td>
<td>-</td>
<td>0.94</td>
</tr>
</tbody>
</table>
